AIR SUSPENSION SYSTEM
CONFIGURATIONS
________________________________
 POWER-LEVEL (73-75 COACHES
     -ROTARY VALVE CONTROLS
     -SINGLE AIR COMPRESSOR (DANA)

 ELECTRO-LEVEL I (75-78 COACHES)
     -SWITCH TYPE CONTROL PANEL
     -SINGLE AIR COMPRESSOR (DANA)

 ELECTRO-LEVEL II (78 COACHES)
     -SWITCH TYPE CONTROL PANEL
     -DUAL AIR COMPRESSORS (GM)



POWER-LEVEL AIR SYSTEM
SCHEMATIC (73-75 MODELS)


AC=Air Compressor, HS=Height Sensor, PS=Pressure Switch


ELECTRO-LEVEL I AIR SYSTEM
SCHEMATIC (75-78 MODELS)


AC=AIR COMPRESSOR, HS=HEIGHT SENSOR, PS=PRESSURE SWITCH


ELECTRO-LEVEL I CONTROL PANEL
SCHEMATIC



ELECTRO-LEVEL II AIR SYSTEM
SCHEMATIC (78 MODELS)

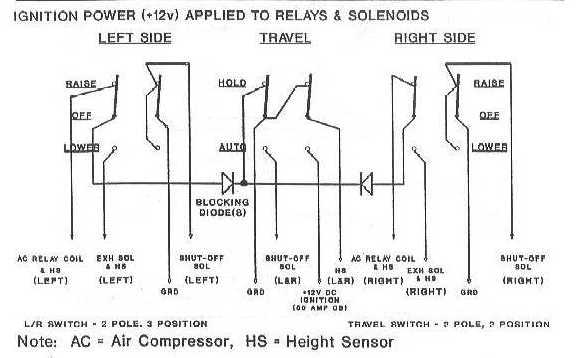

ELECTRO-LEVEL II CONTROL PANEL
SCHEMATIC

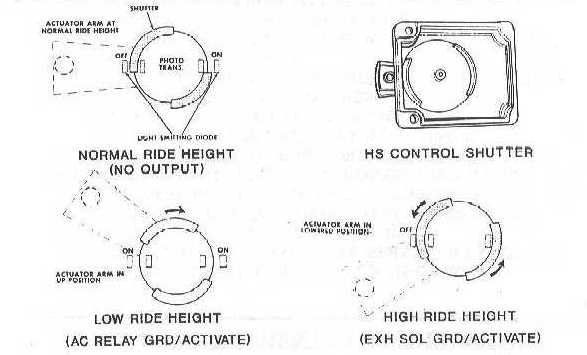

HEIGHT CONTROL SENSOR OPERATION
ELECTRO-LEVEL II



AIR SUSPENSION SYSTEM
IMPROVEMENT CONSIDERATIONS

 ALL SYSTEMS
  Install Upgrade Kit (Cinnabar 1-800-720-CBAR)
 5 Micron Filter, Stainless Steel Check Valve, Pressure Relief Valve, Air Pressure Gauge (P-Level & E-Level I)
 Convert Low Air Sensor Wiring to AC "ON" Indicator
 Remove Sensor, Plug Hole, and Route through Pressure Switch, (2nd Pole)
 Clean and Lubricate Electrical Connections including Ground

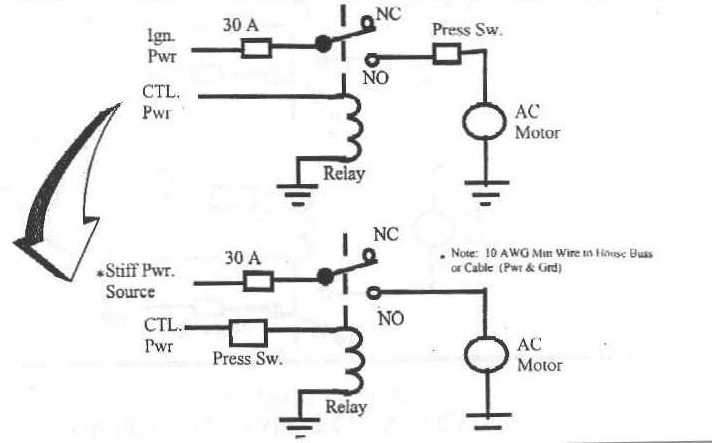

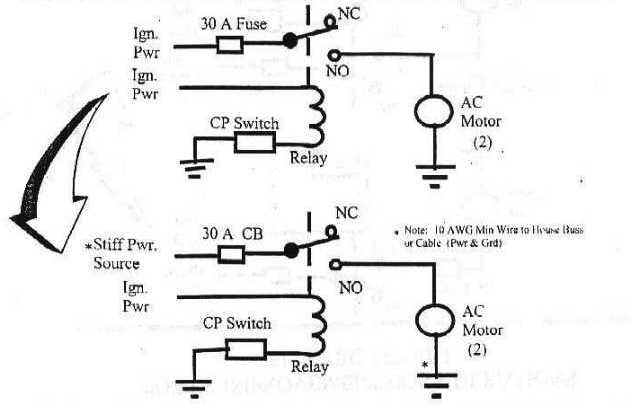

 Revise AC +12V Power Wiring for "Stiff" Power Source
 Change at Relay for E-Level I & II (30 AMP CB)
 Add Power Relay for P-Level (30 AMP CB)

 POWER-LEVEL SYSTEM ('73 / '74 Coaches)
 Relocate Air Tank to Driver's Side (Away from Battery)
 Hang Vertically Near AC
 Relocate Air Pressure Switch to Sense Air Tank Pressure

 ELECTRO-LEVEL I SYSTEM ('75 / '78 Coaches)
 Replace Plastic Air Hose Fittings with Brass Fittings

 ELECTRO-LEVEL II ('78 Coaches)
 Modify Control Logic to Activate "HOLD SOLENOID" Only When Raising or Lowering Coach (Auto & Manual Modes)

 ALL SYSTEMS....ADJUST RIDE HEIGHT AS NECESSARY





AIR SUSPENSION SYSTEM
TROUBLE SHOOTING CONSIDERATIONS
Soap & Water to Detect Leak Source
Interchange Componenets & Observe Results to Isolate Leak
  -Temporarily Cross Air Batg Hoses to Isolate Leak Between Air Bag & Air Distribution Section (EL I & EL II)
   -Swap Rotary Valves to Isolate to Rotarty Valve (P-Level)
Remove Selective Components & Plug Air Source to Isolate
If Height Steady in Hold Mode...Suspect Air Distribution Section
Worn Rotary Valve Knob Detent Tab Causes Erratic Operation
  -Replace or Shim Knob
AC Rebuilt Kits Available for "Tired" Compressors
  -See John Clement (951)737-0969
Rotate "Hot Dog" Bags 180 Degrees BEFORE they Collapse
KEEP SYSTEM TIGHT & Avoid Overloading Tires with Unlevel Coach



POWER IMPROVEMENT CONSIDERATIONS
POWER LEVEL



POWER IMPROVEMENT CONSIDERATIONS
ELECTRO-LEVEL I



POWER IMPROVEMENT CONSIDERATIONS
ELECTRO-LEVEL II
