FAN SHROUD MODIFICATION

Make it easier to access your belts and lose 25 pounds in the process.


[ First | Previous | Next | Last ]

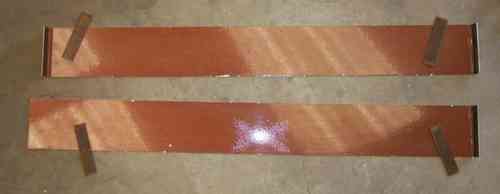

The new extension consists of 2 pieces of .030 aluminum or sheet metal 4" x 36" and 4 - 1/8" x 1" x 4" steel bars. Three of the ends are bent up 90 degrees and the bar stock is rivited on for stiffeners. The fourth end is bent up and trimmed where needed to butt against the top shroud half.
